Layout roads, from earthwork to asphalt

Photographs from our layout sites, in the order the work happens: plots levelled and kerbs laid, the road bed, drains, footpaths with tree pits and street lights, then asphalt.

Service
Land development
Scope
Roads, kerbs, drains, footpaths and street lights for plotted layouts
Shown as
Completed work
A finished layout road: fresh asphalt, painted kerbs, a paved footpath corner and young trees on the lawn beside it
Finished road and corner

The story

Levelling and kerbs

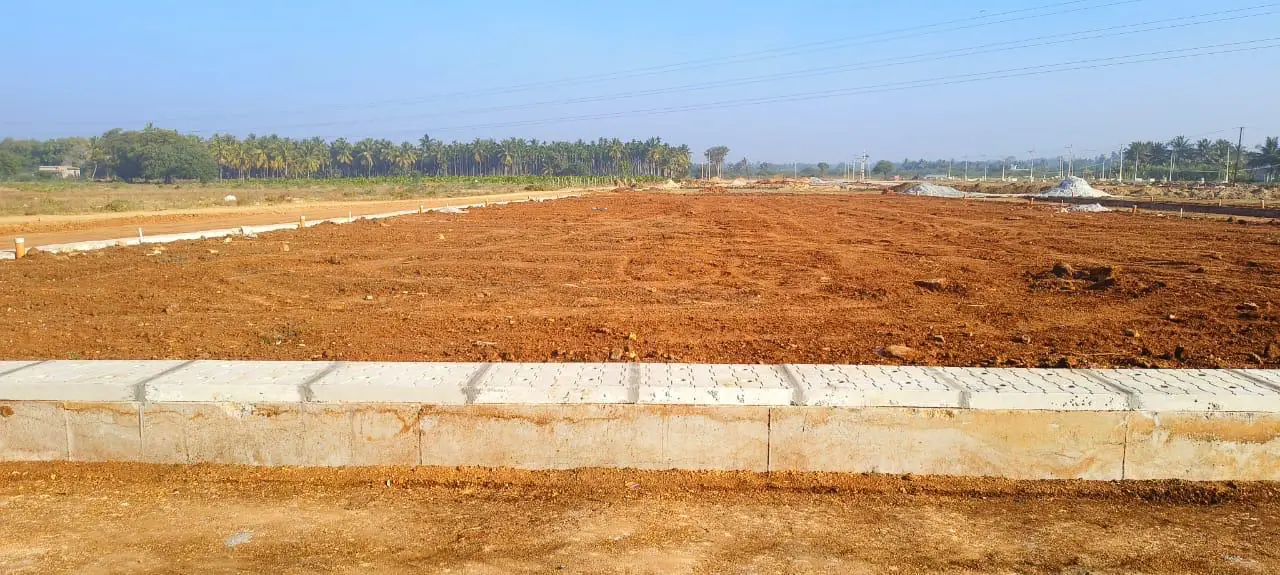

A layout starts as open land. The ground is levelled, the plots and roads are marked, and the kerb lines go down first, so every later layer has an edge to work to.

The road bed

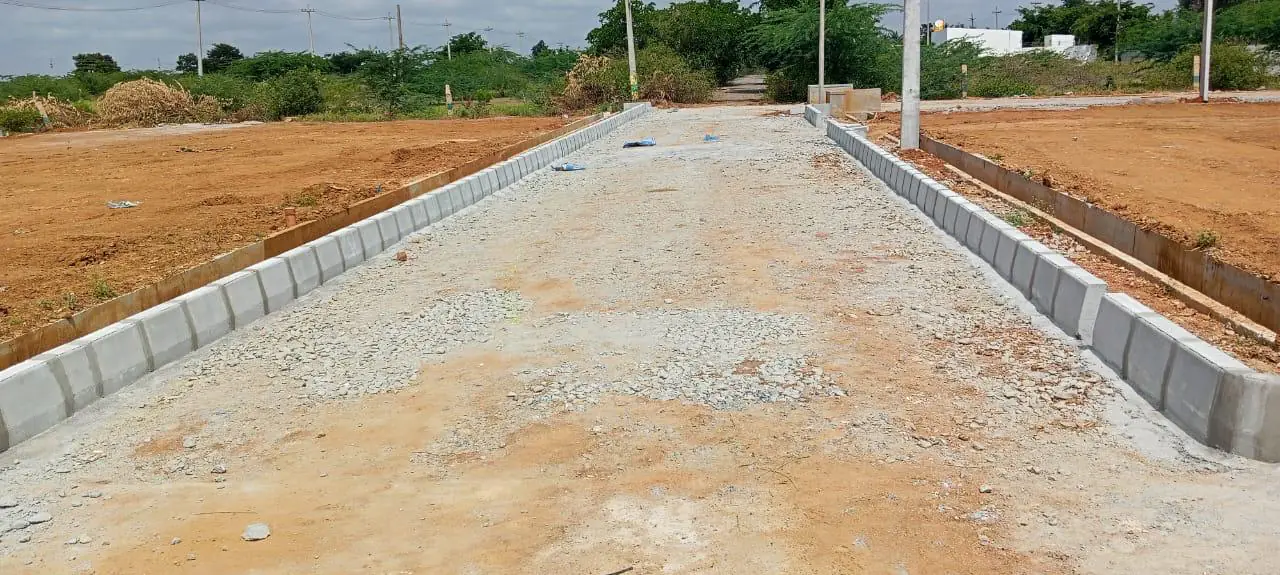

Between the kerbs the road is built up in layers of crushed stone. Precast drain units run beside it, ready to be set and covered.

Footpaths and lights

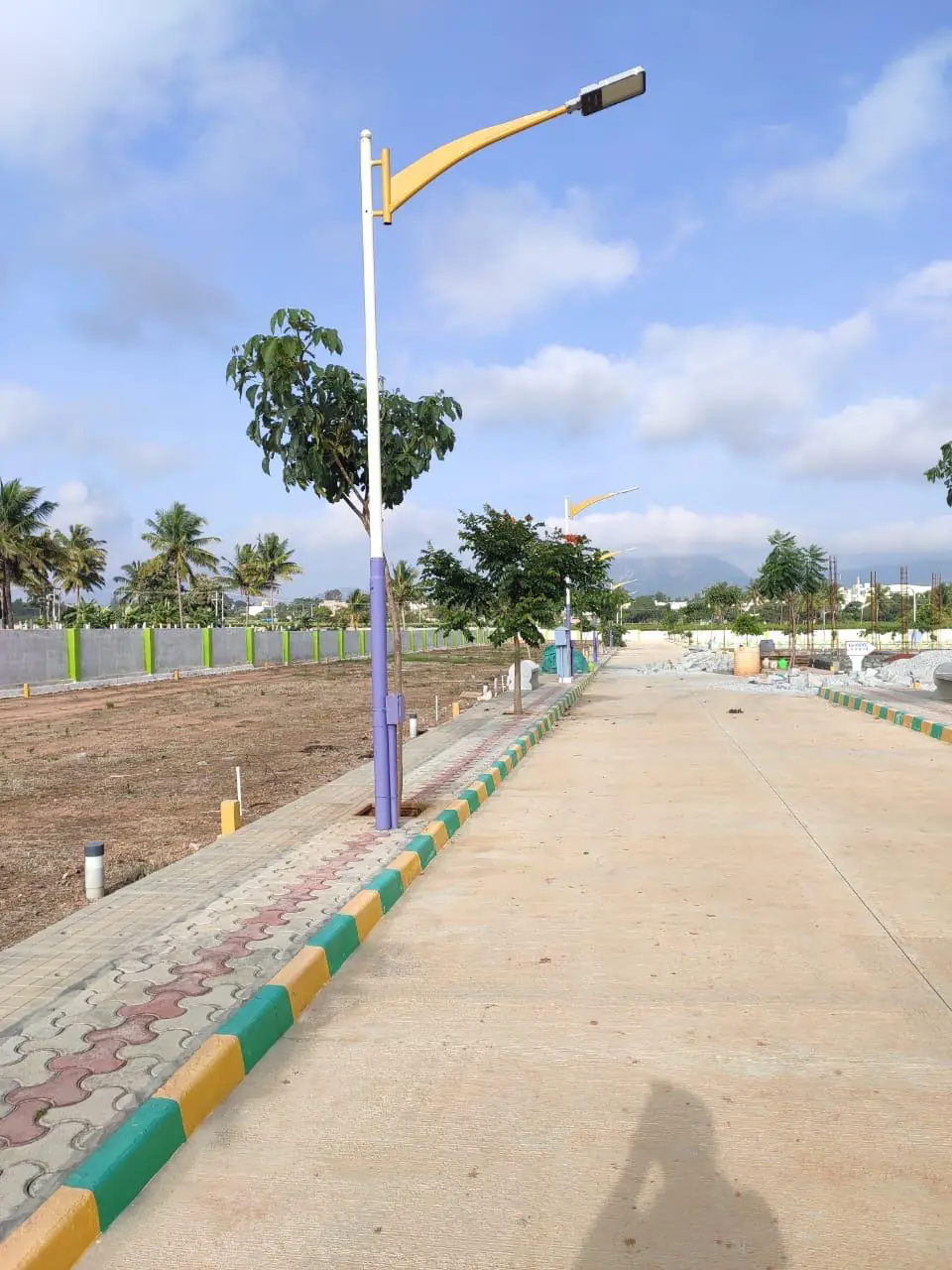

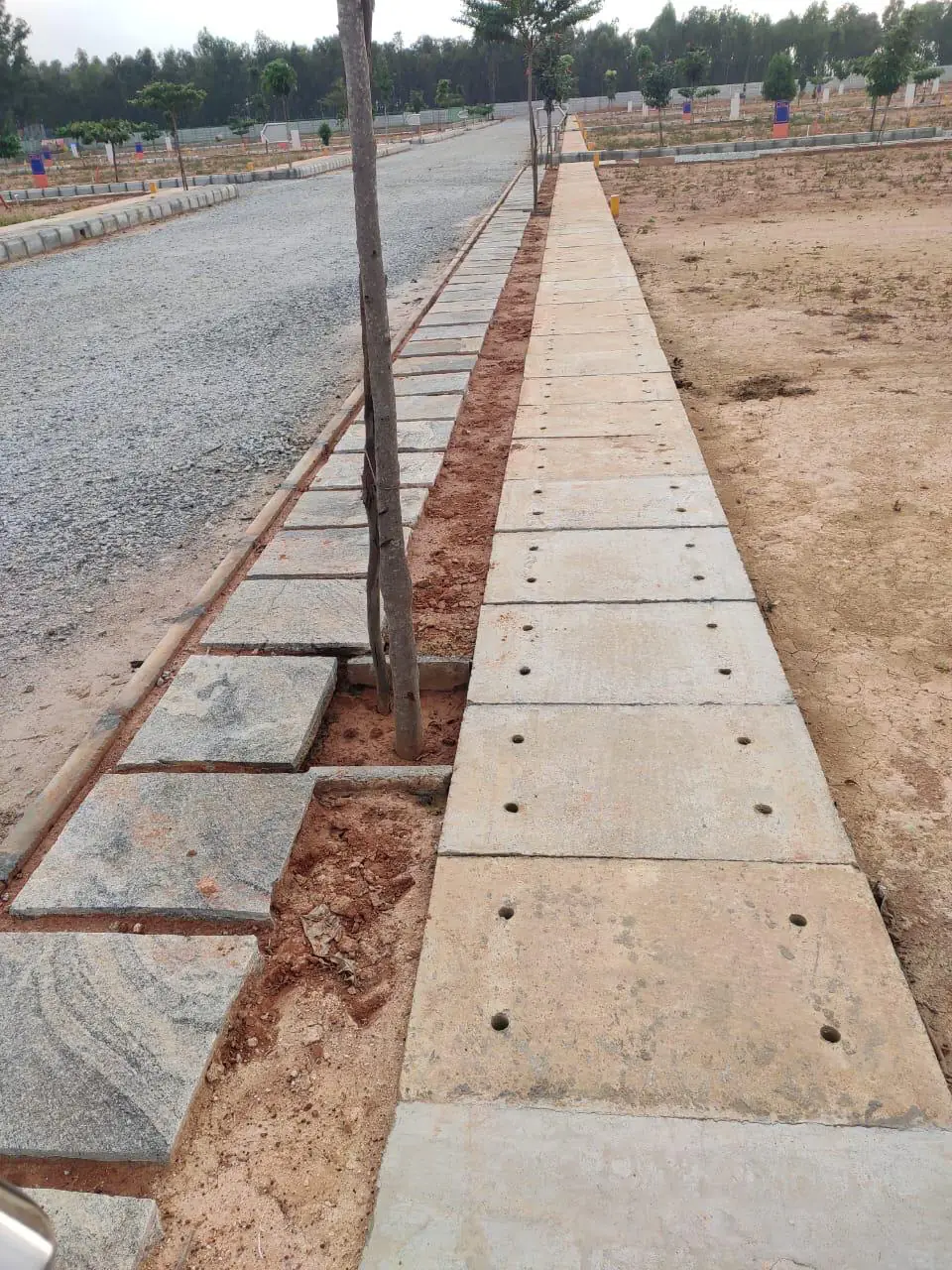

Footpaths are laid in slabs or pavers, with pits left open for trees, and street lights go in along the edge.

Asphalt

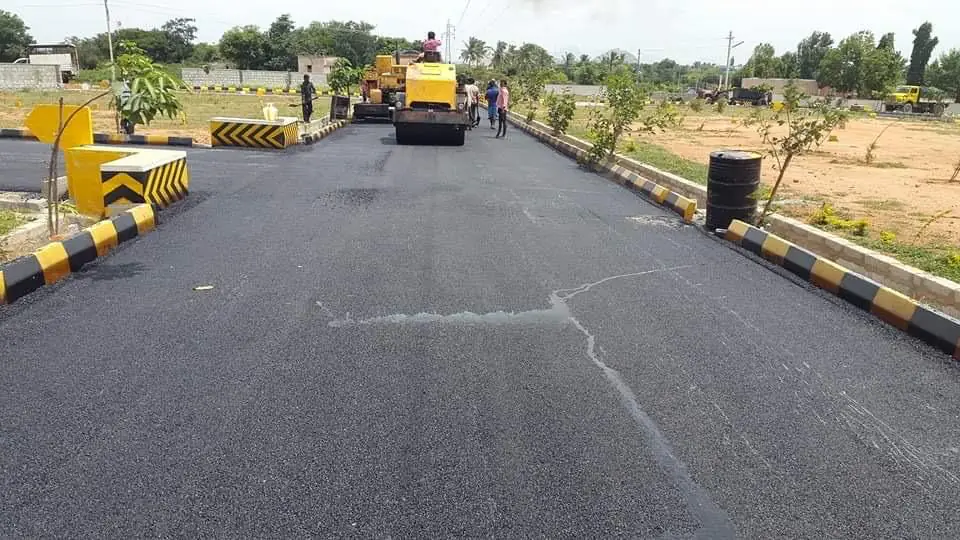

The asphalt is laid by a paver and rolled, and the kerbs are painted. What is left is a road a buyer can drive along to their own plot.
